Artist Help:Overview
Docked Frames[edit]

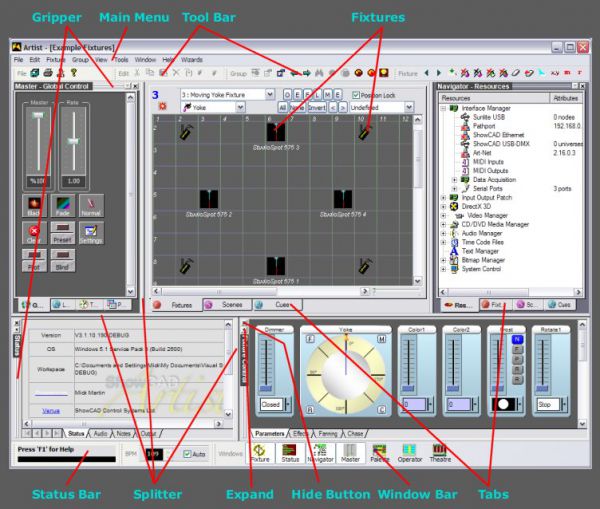

The screen is made up of several windows docked together. All these, except the centre window (the Client), can be hidden, detached, sized and positioned. They can even be dragged onto a separate screen in a multi-monitor system.
To undock a frame, double-click on the window's gripper bar or right-click in the window and uncheck Allow Docking. This will float the window. You can position the detached window by clicking and dragging on its gripper bar. As you move it around it will try to dock to another convenient position if docking is allowed. To prevent it from docking to the main frame again, right-click in the window and uncheck Allow Docking.
Gripper bar[edit]
The gripper bar is used to drag the window to a new location by holding the left mouse button down. Double-clicking on it will cause the frame window to detach from the application's main frame.
Hide button[edit]
The hide button, indicated by a small X, removes the frame window. It can be restored from the Window menu item.
Splitter bar[edit]
The Splitter bars separate each frame window. Positioning the mouse pointer over one will cause the pointer to change appearance. Holding the left mouse button down will allow you to drag the splitter bar to a new position, thus re-sizing the contained windows.
Expand/Collapse[edit]
The collapse button is beside the Hide button. It causes the window to occupy all the application space on the horizontal plane.
Tabs[edit]
Some frame windows contain tabs. These tabs are different views within the frame window.
Status bar[edit]
This displays occasional information to the user and the progress of operations that take some time to complete.
Window bar[edit]
This bar contains buttons that allow you to hide or show any of the main dockable windows except the Client.
